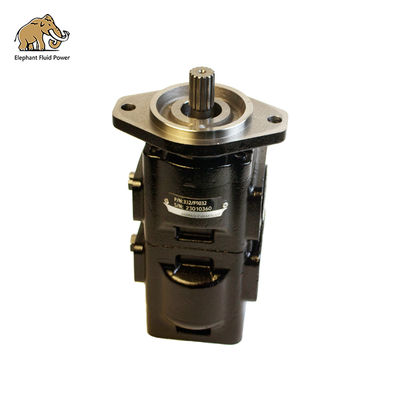

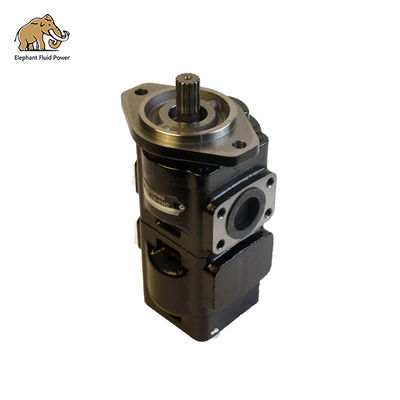

JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV with 100% Interchange and 1" Diameter SAE Splined Shaft

332/F9032  Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV Replacement

Elephant Fluid Power Co.,Ltd supplies 332/F9032  Parker / JCB 3CX Twin Hydraulic Pump 37 + 37 CC/REV Replacement ,equivalent as original Parker,good price,fast lead time,one year warranty.

Technical data:

• Rotation: Clockwise (looking from shaft end)
• 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
• SAE B 2 hole mounting flange
• Front pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
• Rear pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
• Single 2” SAE flange inlet
• Front pump outlet: 1 1/16”-12 UNF threaded
• Rear pump outlet: 1 1/16”-12 UNF threaded
• Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

• 332/F9032  7029120052 7029120055 20/925744

Weight

• 26KG

Elephant Fluid Power is a professional hydraulic pumps,hydraulic motors and pump parts manufacturer and supplier,our JCB pumps have the same quality as original Parker,but the price are more competitive,and our lead time is short and also we have one year warranty since sales.
