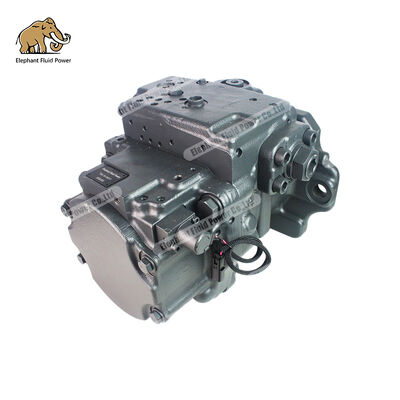

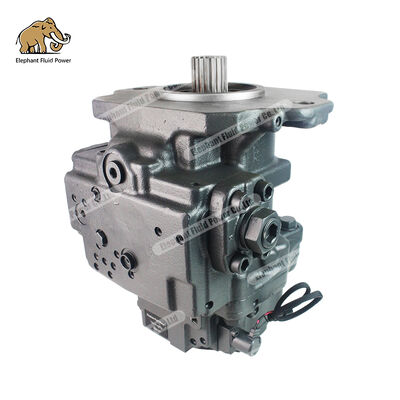

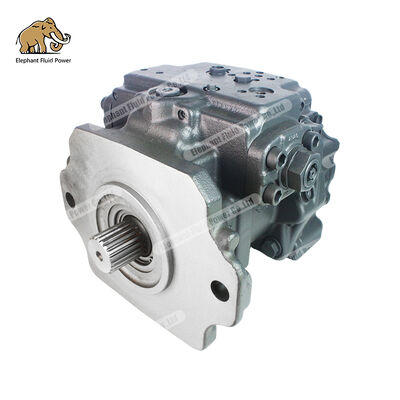

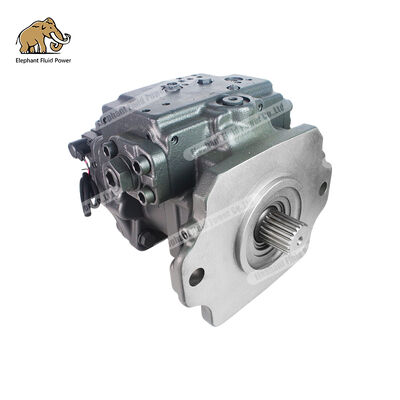

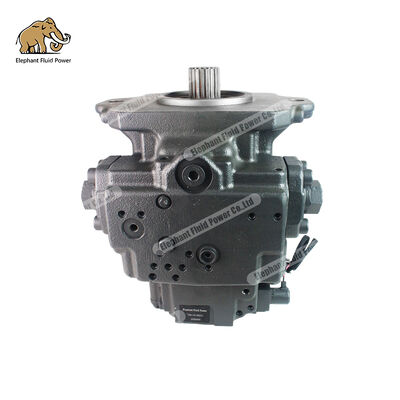

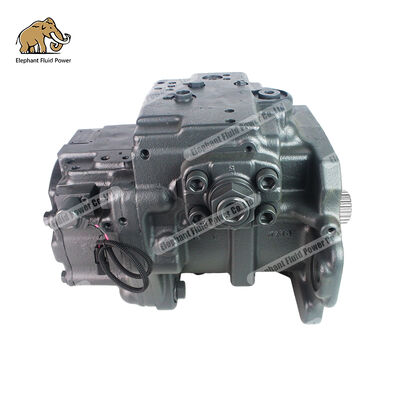

708-1H-00250 Main Pump For Komatsu D155AX-6 D155AX-7 Bulldozers
Elephant Fluid Power manufactures 708-1H-00250 Main Pump For Komatsu D155AX-6 D155AX-7 Bulldozers. Our replacement parts offer equivalent quality to original Komatsu components at competitive pricing, with fast lead times and comprehensive after-sales support.
Product Specifications
| Part Number |
708-1H-00250 |
| OEM Reference |
708-1H-00250 |
| Application |
D155AX-6 D155AX-7 Bulldozers |
| Warranty |
One year |
Product Description
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
708-1H-00250 |
[1] |
PUMP ASSY Komatsu |
140 kg. |
|
|
|
analogs:["7081H00251", "7081H01251"] |
|
|
708-1H-01250 |
[1] |
PUMP SUB ASSY Komatsu |
140 kg. |
|
|
|
analogs:["7081H00250", "7081H00251", "7081H01251"] |
|
|
708-2H-04650 |
[1] |
BLOCK ASSY Komatsu |
8.25 kg. |
|
|
|
analogs:["7082H04760"] |
|
| 3 |
708-18-13230 |
[1] |
PIN Komatsu |
0.01 kg. |
| 4 |
04065-05820 |
[1] |
RING Komatsu |
0.01 kg. |
| 5 |
708-2H-33140 |
[1] |
SEAT Komatsu |
0.1 kg. |
| 6 |
708-2H-33150 |
[1] |
SPRING Komatsu |
0.29 kg. |
| 7 |
708-2H-23141 |
[1] |
SEAT Komatsu |
0.03 kg. |
| 8 |
708-2H-23350 |
[1] |
GUIDE,RETAINER Komatsu |
0.24 kg. |
|
|
|
analogs:["R7082H23350"] |
|
| 9 |
708-2H-23360 |
[3] |
PIN Komatsu |
0.006 kg. |
| 10 |
708-2H-33343 |
[1] |
RETAINER,SHOE Komatsu |
0.45 kg. |
| 11 |
708-2H-33311 |
[9] |
PISTON SUB ASSY Komatsu |
0.36 kg. |
|
708-2H-04690 |
[1] |
CRADLE SUB ASSY Komatsu |
8 kg. |
| 14 |
04020-01434 |
[1] |
PIN Komatsu |
0.044 kg. |
| 15 |
07000-B1009 |
[1] |
O-RING Komatsu China |
0.001 kg. |
|
|
|
analogs:["7082L23910"] |
|
| 16 |
01252-61235 |
[6] |
BOLT Komatsu |
0.048 kg. |
|
|
|
analogs:["801105554", "0125231235"] |
|
| 17 |
708-2H-34150 |
[1] |
SLIDER Komatsu |
0.453 kg. |
|
708-1H-03260 |
[1] |
VALVE ASSY,PC Komatsu China |
|
|
708-1H-03240 |
[1] |
PISTON ASSY,SERVO Komatsu China |
|
| 20 |
708-2G-15320 |
[1] |
SEAL Komatsu |
0.002 kg. |
| 21 |
708-2H-15310 |
[1] |
PLUG Komatsu |
0.115 kg. |
|
|
|
analogs:["7082H15311"] |
|
| 22 |
708-2L-35760 |
[1] |
BALL Komatsu |
0.001 kg. |
| 23 |
708-2L-35770 |
[1] |
PLUG Komatsu |
0.005 kg. |
| 24 |
708-2L-35690 |
[3] |
SEAL Komatsu |
0.003 kg. |
| 25 |
708-2L-35170 |
[1] |
PIN Komatsu |
0.01 kg. |
| 26 |
708-2H-15210 |
[1] |
SPOOL Komatsu China |
|
| 27 |
708-2G-15290 |
[1] |
RETAINER Komatsu |
0.05 kg. |
| 28 |
708-2G-15140 |
[1] |
SEAT Komatsu |
0.01 kg. |
| 29 |
708-2H-15330 |
[1] |
SPRING Komatsu |
0.15 kg. |
| 30 |
708-2H-15350 |
[1] |
SPRING Komatsu China |
|
| 31 |
708-2G-14340 |
[1] |
SCREW Komatsu |
0.622 kg. |
| 32 |
07000-B3038 |
[1] |
O-RING Komatsu |
0.002 kg. |
| 33 |
708-2G-15230 |
[1] |
RING,BACK-UP Komatsu |
0.001 kg. |
| 34 |
708-2G-15260 |
[1] |
SEAL Komatsu |
0.003 kg. |
| 35 |
708-2G-15390 |
[1] |
PLUG Komatsu China |
|
| 36 |
07000-B2012 |
[1] |
O-RING Komatsu China |
0.001 kg. |
| 37 |
07000-B2050 |
[1] |
O-RING Komatsu |
0.002 kg. |
| 38 |
708-2G-15310 |
[1] |
RING Komatsu |
0.001 kg. |
| 39 |
708-2L-44161 |
[1] |
COVER Komatsu |
1.502 kg. |
| 40 |
01580-10806 |
[1] |
NUT Komatsu |
0.005 kg. |
|
|
|
analogs:["801920104"] |
|
| 41 |
708-2L-35290 |
[1] |
NUT Komatsu |
0.12 kg. |
| 42 |
708-2G-15330 |
[1] |
RING,WIRE Komatsu |
0.005 kg. |
| 43 |
01252-61645 |
[4] |
BOLT Komatsu |
0.119 kg |
Manufacturer Profile
Elephant Fluid Power is a professional manufacturer specializing in hydraulic pumps, hydraulic motors, and pump components. With a strong global reputation built on quality commitment and customer service excellence, we support our partners in growing their businesses within competitive markets.
Supported Hydraulic Models
- Rexroth: A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260
- Kawasaki: K3SP36C, K3V63DT/112DT/140DT/180DT/280DT, K3VL28/45/60/80/112/140/200, K3VG63/112/180/280, K7V63/100, K7VG180/265, K5V80/140/160/200, NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270, NX15, NVK45, KVC925/930/932, M2X55/63/96/120/128/146/150/170/210, M5X130/150/173/180/500, MX50/80/150/173/200/250/450/500/530/750
- KAYABA: MAG150/170, KYB87, MSG18P/27P/44P/50P, MSF series
- Komatsu: HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650
- Libherr: LPVD 35/45/64/75/90/100/125/140/165/225/250, FMV075/100, LMF(V)45/64/75/90/100/125/140
- Toshiba: PVB80/92, PVC80/90, SG 015/02/025/04/08/12/15/17/20/25
- Linder: HPV55/75/105/135/165/210/280, HPR75/90/100/130/160, MPR28/45/63/71, HMR75/105/135/165, HMF28/35/50/, BPV35/50/70/100/200, B2PV35/50/75/105/140/186, BMF35/55/75/105/140/186/260, BMV35/55/75/105/135, BPR55/75/105/140/186/260
- Sauer: PV90R(L)(M)030/42/55/75/100/130/180/250, PV42-28/41/51, SPV15/18, KRR(LRR)025C/030D/038C/045D, MR(MS)070/089/227/334
- Eaton: 3321/3331, 4621/4631, 5421/5431, 78461/78462
- Vicker: PVE12/21/45, TA19/MFE19, PVM 018/020/045/050/057/063/074/081/098/106/131/141, PVH 57/74/98/131/141, PVB 5/6/10/15/20/29/45/90
- Yuken: A10/16/22/37/40/45/56/70/90/100/125/145/220, A3H16/37/56/71/100/145/180
- Parker: PVP16/23/33/41/48/60/76/100/140, PV 016/020/023/028/032/040/046/063/080/092/140/180/270, P2/3-060/075/105/145, PAVC 33/38/65/100
- Hitachi: HPV050/102/105/118/135, HMGC16/32/48, HMGF35/36/38/57
- Tokiwa: MKV23/33
- Uchida: A10VD17/23/28/40/43/71, AP2D12/14/18/21/25/28/36/38/42, A8VO55/59/80/86/107/115/172
- Nachi: YC35-6, PVD-2B-32/34/36/38/40/42/45/50, PVD-3B-54/56/60/66, PZ-6B-180/220, PVK-2B-50/505, PZ-4B-100, PVD-00B-14/16P, PVD-1B-23/28/32/34
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory.
How long is your delivery time?
Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra?
We cannot offer samples free of charge, but we can supply goods at sample pricing.
What are your payment terms?
Payment ≤ 1000 USD: 100% in advance. Payment ≥ 1000 USD: 30% T/T in advance, balance before shipment.
Company Expertise & Applications
Our company has extensive experience in repairing various imported and domestic hydraulic components including piston pumps, motors, and reducers. We operate advanced hydraulic pump test benches and employ professional hydraulic system engineers with rich practical maintenance experience.
Our products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, and environmental protection machinery. We serve construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, and environmental protection industries.
With flexible operations, excellent reputation, reliable service, and proven product quality, we welcome your enquiries and look forward to becoming your trusted partner.
