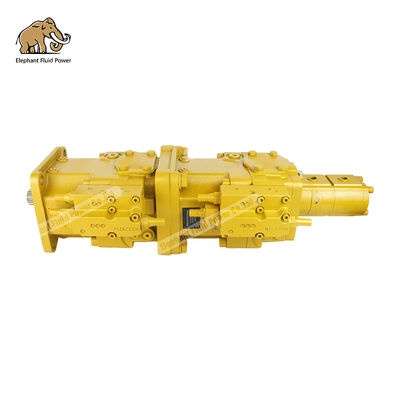

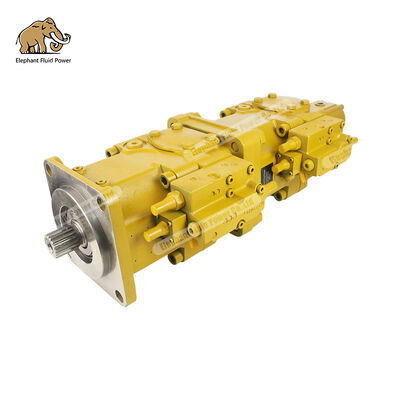

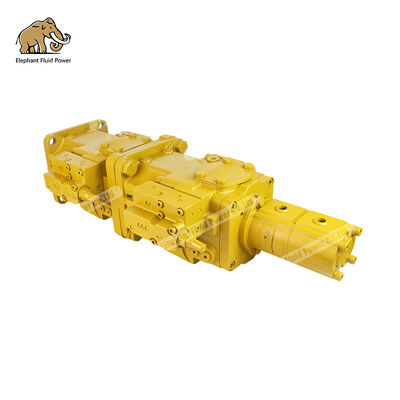

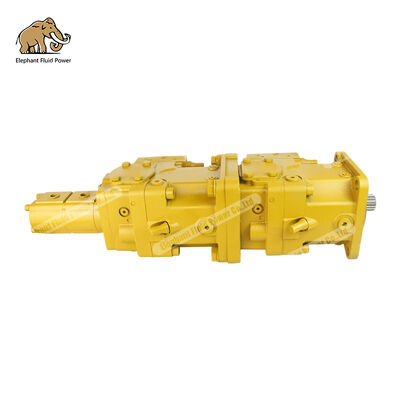

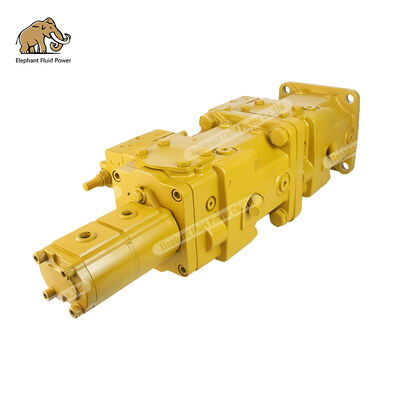

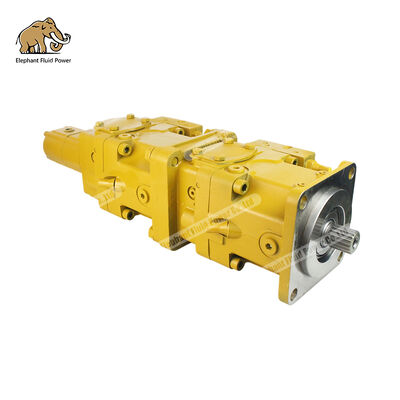

Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group

顧客の検討
非常に満たされた、良質、私のポンプのための多くの費用を救う速い配達

—— マーティン

ワウ、それは完全である。私がポンプのモデルを知っていないので、私はそれらにサイズを提供した。それらは私に右の付属品を送り、取付けは完全に適している。ありがとう。

—— フィリッポ

オンラインです

Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group

Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group
Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group

大画像 :  Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group

商品の詳細:
起源の場所: 中国
ブランド名: Elephant Fluid Power
証明: ISO,CE
モデル番号: A11VO75
お支払配送条件:
最小注文数量: 1セット
価格: Elephant Fluid Power
パッケージの詳細: 紙箱か木製
受渡し時間: 5~8日
支払条件: TT、ペイパル、ウェスタンユニオン
供給の能力: 1週あたりの500000セット

Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group

説明
材料: 鉄鋳造 アプリケーション: 構造機械修理
交換: 100% 品質: オリジナルとして
サービス: アフターサービス バラエティ: 多くの
ハイライト:

Rexroth A11VO75LRDH hydraulic pump

,

high pressure axial piston pump

,

triple hydraulic pump assembly

Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group



Elephant Fluid Power provides Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group . Our factory direct sales model ensures competitive pricing, fast lead times, and comprehensive one-year warranty coverage.



Technical data:



1.Main Pumps

  • Model: A11VO75 (Swash Plate Axial Piston Variable Displacement Pump)

  •  Displacement: 75 cc/rev

  • Nominal Pressure: 350 bar (35 MPa)

  • Maximum Pressure: 400 bar (40 MPa)

  • Control Type: LRDH

    • L: Power Control

    • R: Pressure Control

    • D: Pressure Summation Control

    • H: Hydraulic Stroke Limiting

  • Flow Rate: at 2150 rpm ,per displacement 160 L/min.

2.Rear Gear Pump

  • Nomal displacement:  10cc to 28cc

  • Pressure: about 200 - 250 bar.



Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group 0

Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group 1

Key Advantages

  • Highest quality warranty with the most favorable pricing
  • Comprehensive product range for diverse applications
  • Secure packaging and expedited delivery options
  • Professional and responsive after-sales support
  • Complete manufacturing capabilities from raw materials to finished products
  • 16 years of hydraulic industry expertise serving clients in 80+ countries
Supported Hydraulic Models
Rexroth: A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260
Kawasaki: K3SP36C, K3V63DT/112DT/140DT/180DT/280DT, K3VL28/45/60/80/112/140/200, K3VG63/112/180/280, K7V63/100, K7VG180/265, K5V80/140/160/200, NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270, NX15, NVK45, KVC925/930/932, M2X55/63/96/120/128/146/150/170/210, M5X130/150/173/180/500, MX50/80/150/173/200/250/450/500/530/750
KAYABA: MAG150/170, KYB87, MSG18P/27P/44P/50P, MSF series
Komatsu: HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650
Libherr: LPVD 35/45/64/75/90/100/125/140/165/225/250, FMV075/100, LMF(V)45/64/75/90/100/125/140
Toshiba: PVB80/92, PVC80/90, SG 015/02/025/04/08/12/15/17/20/25
Linder: HPV55/75/105/135/165/210/280, HPR75/90/100/130/160, MPR28/45/63/71, HMR75/105/135/165, HMF28/35/50/, BPV35/50/70/100/200, B2PV35/50/75/105/140/186, BMF35/55/75/105/140/186/260, BMV35/55/75/105/135, BPR55/75/105/140/186/260
Sauer: PV90R(L)(M)030/42/55/75/100/130/180/250, PV42-28/41/51, SPV15/18, KRR(LRR)025C/030D/038C/045D, MR(MS)070/089/227/334
Eaton: 3321/3331, 4621/4631, 5421/5431, 78461/78462
Vicker: PVE12/21/45, TA19/MFE19, PVM 018/020/045/050/057/063/074/081/098/106/131/141, PVH 57/74/98/131/141, PVB 5/6/10/15/20/29/45/90
Yuken: A10/16/22/37/40/45/56/70/90/100/125/145/220, A3H16/37/56/71/100/145/180
Parker: PVP16/23/33/41/48/60/76/100/140, PV 016/020/023/028/032/040/046/063/080/092/140/180/270, P2/3-060/075/105/145, PAVC 33/38/65/100
Hitachi: HPV050/102/105/118/135, HMGC16/32/48, HMGF35/36/38/57
Tokiwa: MKV23/33
Uchida: A10VD17/23/28/40/43/71, AP2D12/14/18/21/25/28/36/38/42, A8VO55/59/80/86/107/115/172
Nachi: YC35-6, PVD-2B-32/34/36/38/40/42/45/50, PVD-3B-54/56/60/66, PZ-6B-180/220, PVK-2B-50/505, PZ-4B-100, PVD-00B-14/16P, PVD-1B-23/28/32/34
Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group 2 Rexroth A11VO75LRDH + A11VO75LRDH + Gear Pump Triple Hydraulic Pump Assy - High Pressure Axial Piston Pump Group 3
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory.
How long is your delivery time?
Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra?
We cannot offer samples free of charge, but we can supply goods at sample pricing.
What are your payment terms?
Payment ≤ 1000 USD: 100% in advance. Payment ≥ 1000 USD: 30% T/T in advance, balance before shipment.
Our company has extensive experience in repairing various imported and domestic hydraulic components including piston pumps, motors, and reducers. We operate advanced hydraulic pump test benches and employ professional hydraulic system engineers with rich practical maintenance experience. Our products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, and environmental protection machinery. We serve construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, and environmental protection industries. With flexible operations, excellent reputation, reliable service, and proven product quality, we welcome your enquiries and look forward to becoming your trusted partner.
