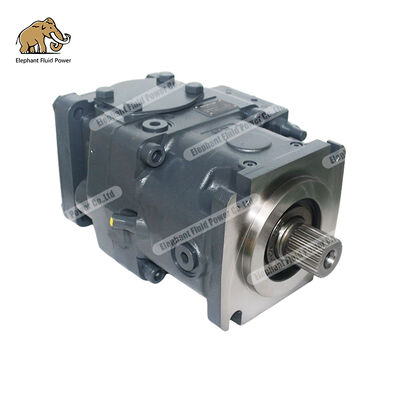

Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts

顧客の検討
非常に満たされた、良質、私のポンプのための多くの費用を救う速い配達

—— マーティン

ワウ、それは完全である。私がポンプのモデルを知っていないので、私はそれらにサイズを提供した。それらは私に右の付属品を送り、取付けは完全に適している。ありがとう。

—— フィリッポ

オンラインです

Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts

Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts
Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts

大画像 :  Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts

商品の詳細:
起源の場所: 中国
ブランド名: Elephant Fluid Power
証明: ISO,CE
モデル番号: 10163971
お支払配送条件:
最小注文数量: 1セット
価格: Elephant Fluid Power
パッケージの詳細: ダンボール箱または木製
受渡し時間: 5~8日
支払条件: TT、ペイパル、ウェスタンユニオン
供給の能力: 1週間あたり500,000セット

Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts

説明
材料: 鉄鋳物 アプリケーション: 構造機械修理
交換: 100% 品質: オリジナルのまま
サービス: アフターサービス バラエティ: 多くの
ハイライト:

Rexroth A11VO130 hydraulic piston pump

,

Schwing 10163971 hydraulic pump

,

concrete pump parts replacement



Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts



Elephant Fluid Power providesRexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts . Our factory direct sales model ensures competitive pricing, fast lead times, and comprehensive one-year warranty coverage.



Description:



Size NG     40 60 75 95 130 145 190 260
Geometric displacement, per revolution Vgmax cm3 42.0 58.5 74.0 93.5 130.0 145.0 193.0 260.0
  Vgmin cm3 0 0 0 0 0 0 0 0
Maximum rotational speed at Vgmax nnom rpm 3000 2700 2550 2350 2100 2200 2100 2000
  at Vg Vgmax nmax rpm 3500 3250 3000 2780 2500 2500 2405s) 2300
Flow at nnom and Vgmax qv l/min 126 158 189 220 273 319 399 468
Power at nnom , Vgmax and Δp=350bar P kW 74 92 110 128 159 186 236 273
Torque at Vgmax and Δp=350bar M Nm 234 326 412 521 724 808 1075 1448
Rotary stiffness drive shaft Z c kNm/rad 88.9 102.4 145.8 199.6 302.5 302.5 346.2 686.5
  P c kNm/rad 87.5 107.9 143.1 196.4 312.4 312.4 383.2 653.8
  S c kNm/rad 58.3 86.3 101.9 143.7 236.9 236.9 259.8 352.0
  T c kNm/rad 74.5 102.4 125.6 178.3 - - 301.9 567.1
Moment of inertia of the rotary group JTW kgm2 0.0048 0.0082 0.0115 0.0173 0.0318 0.0341 0.055 0.0878
Maximum angular acceleration α rad/s2 22000 17000 15000 13000 10500 9000 6800 4800
Case volume V L 1.1 1.35 1.85 2.1 2.9 2.9 3.8 4.6
Weight (without through-drive) approx. m kg 32 40 45 53 66 67 95 125





Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts 0

Rexroth A11VO130 Hydraulic Piston Pump For Schwing 10163971 Hydraulic Pump Concrete Pump Parts 1


Key Advantages

  • Highest quality warranty with the most favorable pricing
  • Comprehensive product range for diverse applications
  • Secure packaging and expedited delivery options
  • Professional and responsive after-sales support
  • Complete manufacturing capabilities from raw materials to finished products
  • 16 years of hydraulic industry expertise serving clients in 80+ countries
Supported Hydraulic Models
Rexroth: A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260
Kawasaki: K3SP36C, K3V63DT/112DT/140DT/180DT/280DT, K3VL28/45/60/80/112/140/200, K3VG63/112/180/280, K7V63/100, K7VG180/265, K5V80/140/160/200, NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270, NX15, NVK45, KVC925/930/932, M2X55/63/96/120/128/146/150/170/210, M5X130/150/173/180/500, MX50/80/150/173/200/250/450/500/530/750
KAYABA: MAG150/170, KYB87, MSG18P/27P/44P/50P, MSF series
Komatsu: HPV 35/55/90/160(PC60/120/200/220/300-3/5)PC400/PC650
Libherr: LPVD 35/45/64/75/90/100/125/140/165/225/250, FMV075/100, LMF(V)45/64/75/90/100/125/140
Toshiba: PVB80/92, PVC80/90, SG 015/02/025/04/08/12/15/17/20/25
Linder: HPV55/75/105/135/165/210/280, HPR75/90/100/130/160, MPR28/45/63/71, HMR75/105/135/165, HMF28/35/50/, BPV35/50/70/100/200, B2PV35/50/75/105/140/186, BMF35/55/75/105/140/186/260, BMV35/55/75/105/135, BPR55/75/105/140/186/260
Sauer: PV90R(L)(M)030/42/55/75/100/130/180/250, PV42-28/41/51, SPV15/18, KRR(LRR)025C/030D/038C/045D, MR(MS)070/089/227/334
Eaton: 3321/3331, 4621/4631, 5421/5431, 78461/78462
Vicker: PVE12/21/45, TA19/MFE19, PVM 018/020/045/050/057/063/074/081/098/106/131/141, PVH 57/74/98/131/141, PVB 5/6/10/15/20/29/45/90
Yuken: A10/16/22/37/40/45/56/70/90/100/125/145/220, A3H16/37/56/71/100/145/180
Parker: PVP16/23/33/41/48/60/76/100/140, PV 016/020/023/028/032/040/046/063/080/092/140/180/270, P2/3-060/075/105/145, PAVC 33/38/65/100
Hitachi: HPV050/102/105/118/135, HMGC16/32/48, HMGF35/36/38/57
Tokiwa: MKV23/33
Uchida: A10VD17/23/28/40/43/71, AP2D12/14/18/21/25/28/36/38/42, A8VO55/59/80/86/107/115/172
Nachi: YC35-6, PVD-2B-32/34/36/38/40/42/45/50, PVD-3B-54/56/60/66, PZ-6B-180/220, PVK-2B-50/505, PZ-4B-100, PVD-00B-14/16P, PVD-1B-23/28/32/34
Hydraulic pump repair parts manufacturing facility Quality control inspection of hydraulic components
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory.
How long is your delivery time?
Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra?
We cannot offer samples free of charge, but we can supply goods at sample pricing.
What are your payment terms?
Payment ≤ 1000 USD: 100% in advance. Payment ≥ 1000 USD: 30% T/T in advance, balance before shipment.
Our company has extensive experience in repairing various imported and domestic hydraulic components including piston pumps, motors, and reducers. We operate advanced hydraulic pump test benches and employ professional hydraulic system engineers with rich practical maintenance experience. Our products are widely used in roadheaders, excavators, concrete mixers, concrete pump trucks, pumping stations, pavers, road rollers, road mixers, hydraulic hoists, steel rolling machines, injection molding machines, petroleum equipment, and environmental protection machinery. We serve construction machinery, metallurgical machinery, mining machinery, hoisting machinery, injection molding machinery, chemical machinery, petroleum, shipping, and environmental protection industries. With flexible operations, excellent reputation, reliable service, and proven product quality, we welcome your enquiries and look forward to becoming your trusted partner.
